IP2xxx-Bxxx | Digital output

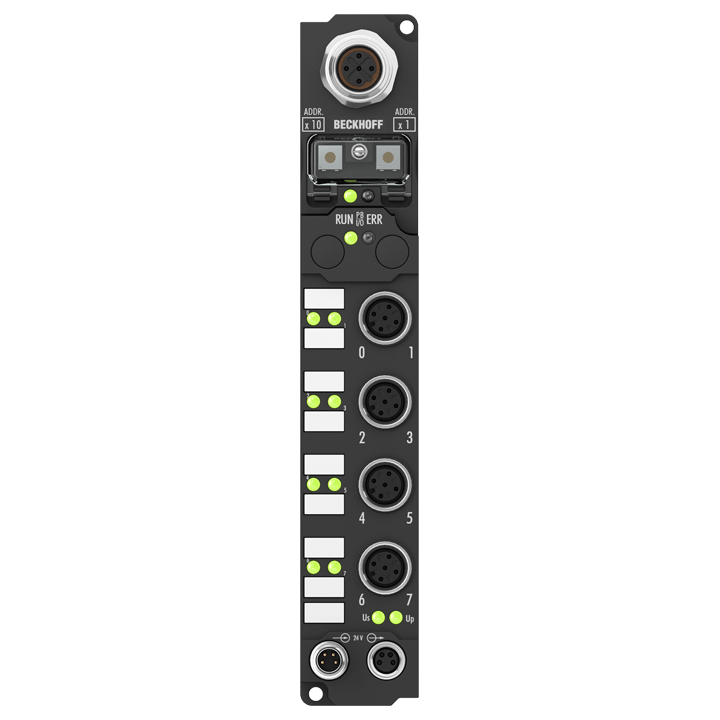

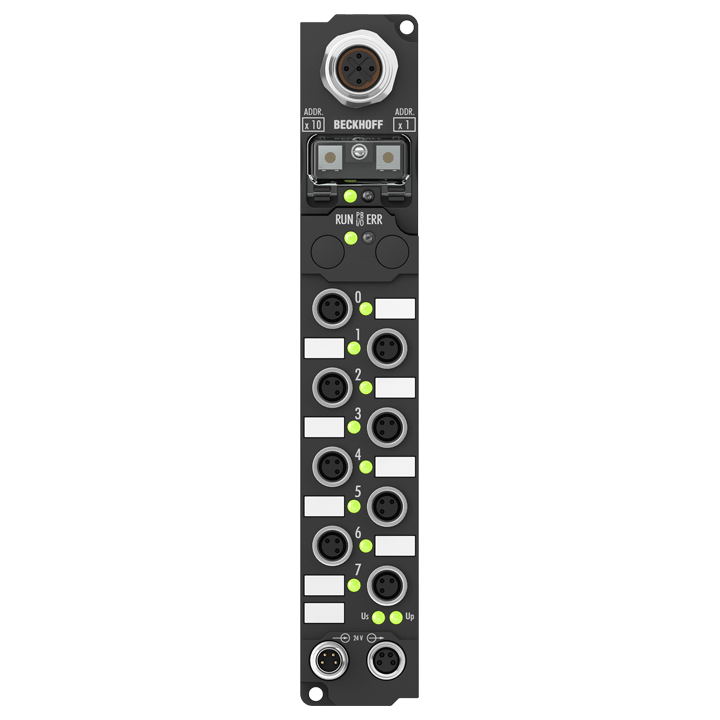

The IP2002-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A and indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors.

The IP2002-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A and indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors.

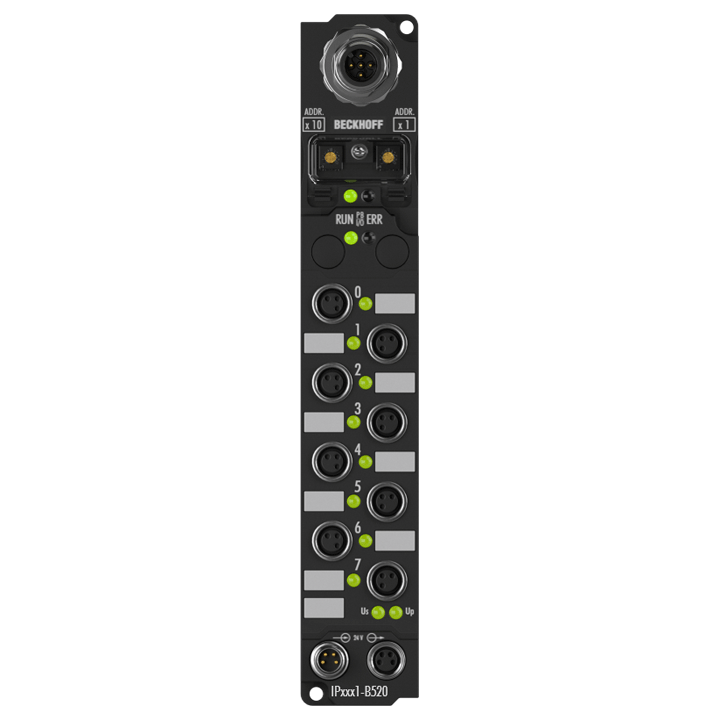

The IP2021-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time or in which not all of the actuators draw 2В A signal current.The signals are connected via M8 screw type connectors.

The IP2022-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time or in which not all of the actuators draw 2В A signal current.The signals are connected via M12 screw type connectors.

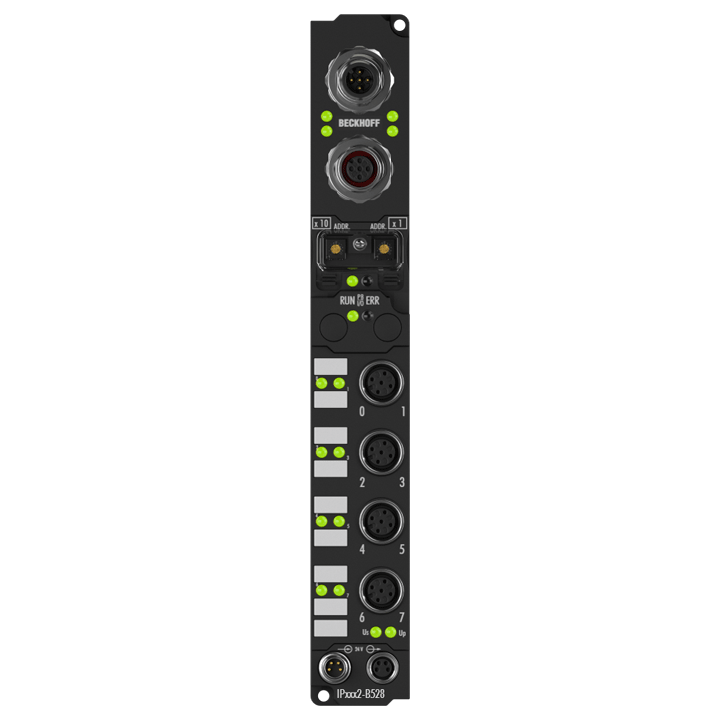

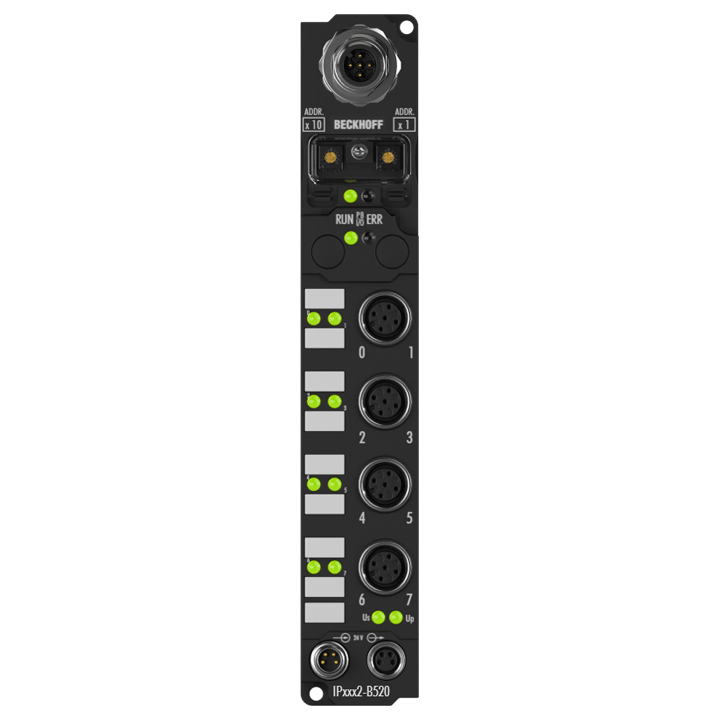

The IP2042-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 12В A. The outputs are supplied by three load circuits, for this reason these modules do not relay the supply voltage. The signals are optionally connected via M12 screw type connectors.

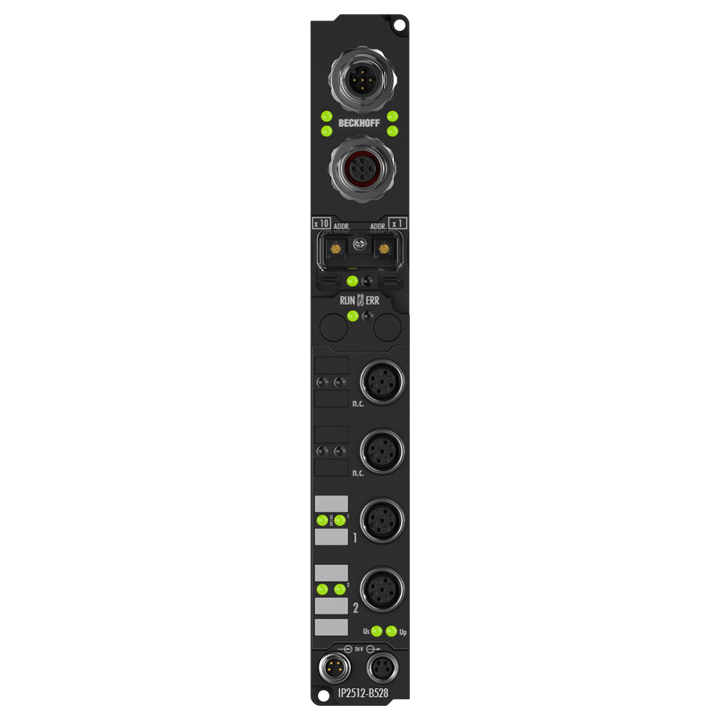

The outputs of the IP2512 module provide a pulse width modulated version of a binary signal. The keying ratio is prescribed by a 10 bit value from the automation unit. The output is protected against overload and short circuit. In addition to the PWM operating mode, the outputs can also be frequency modulated or used to control stepper motors with specified pulses and direction. The module contains two channels that indicate their state by means of light emitting diodes. The LEDs are driven in time with the outputs and show the keying ratio by their brightness.
