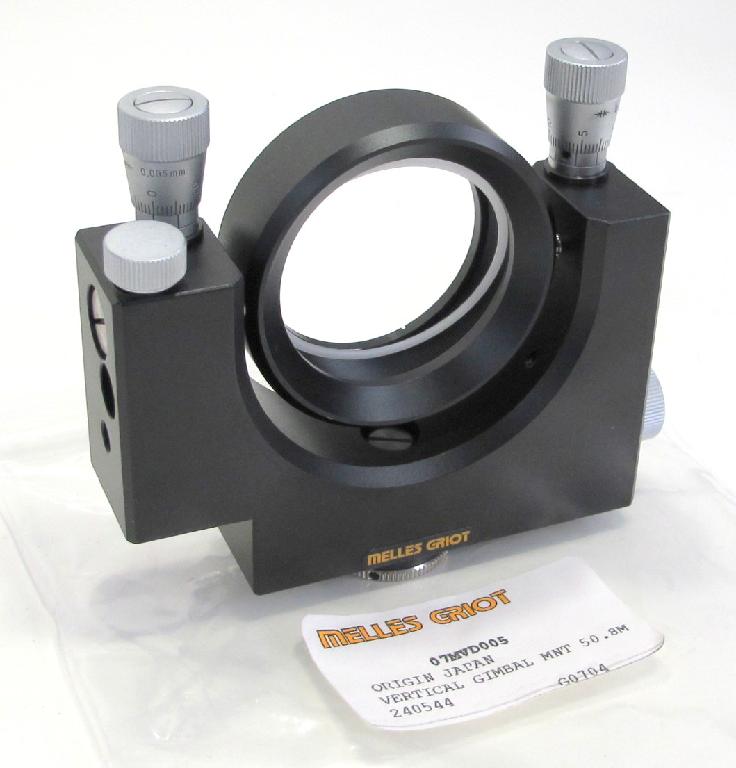

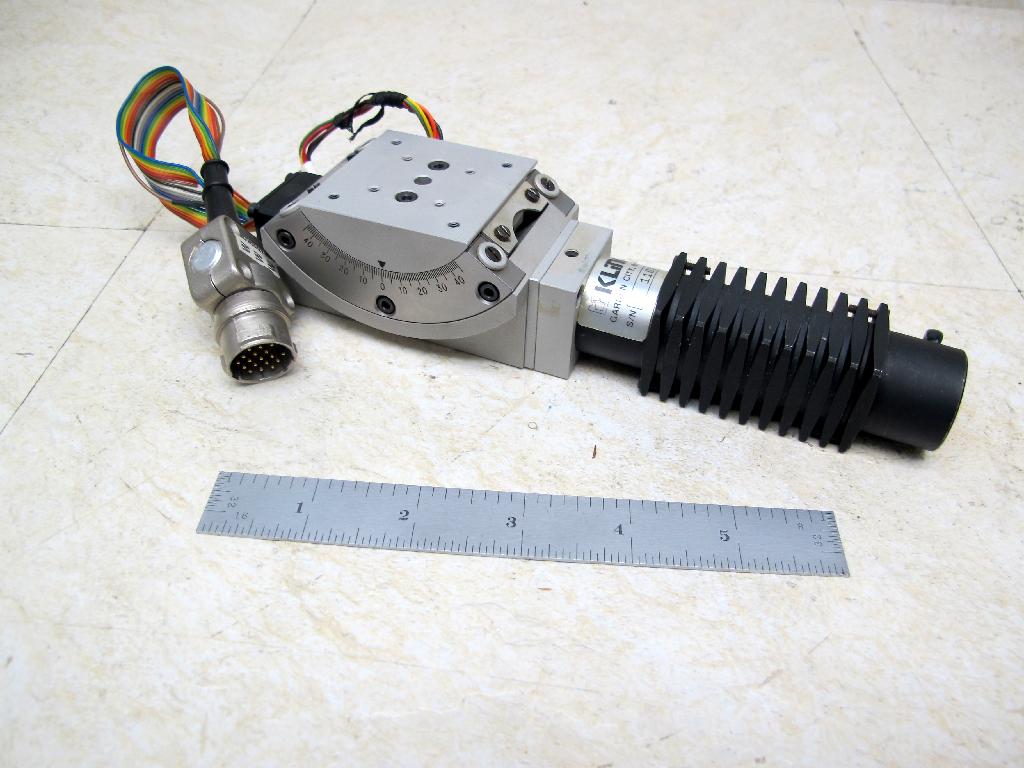

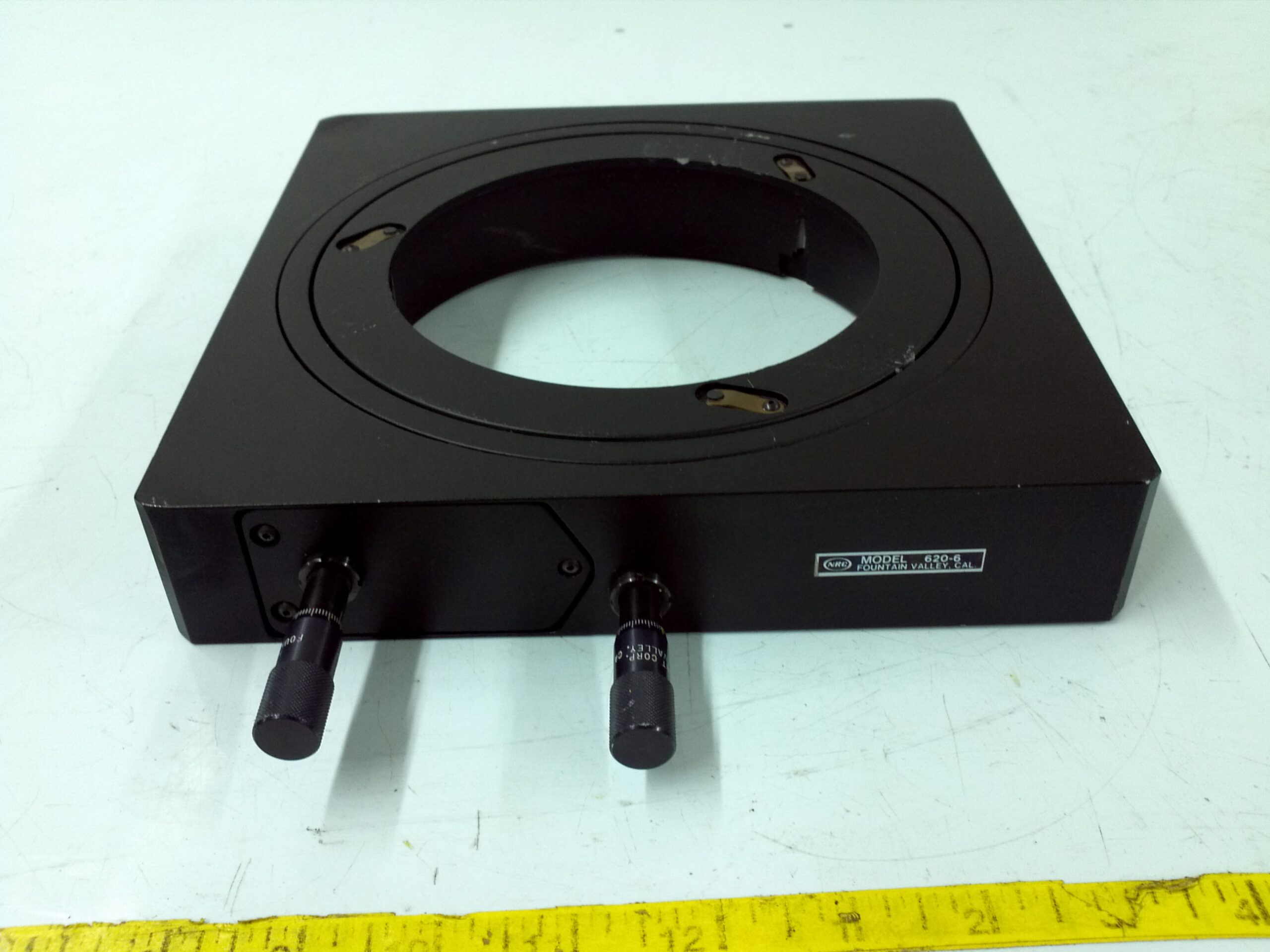

Gimbals and Goniometers

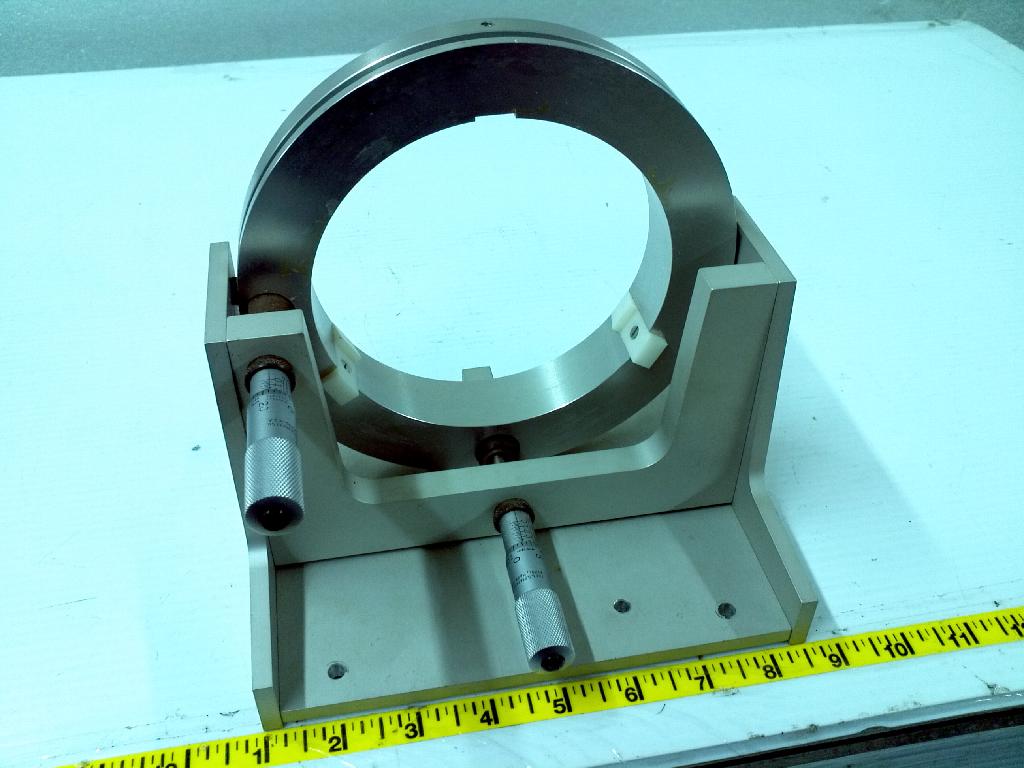

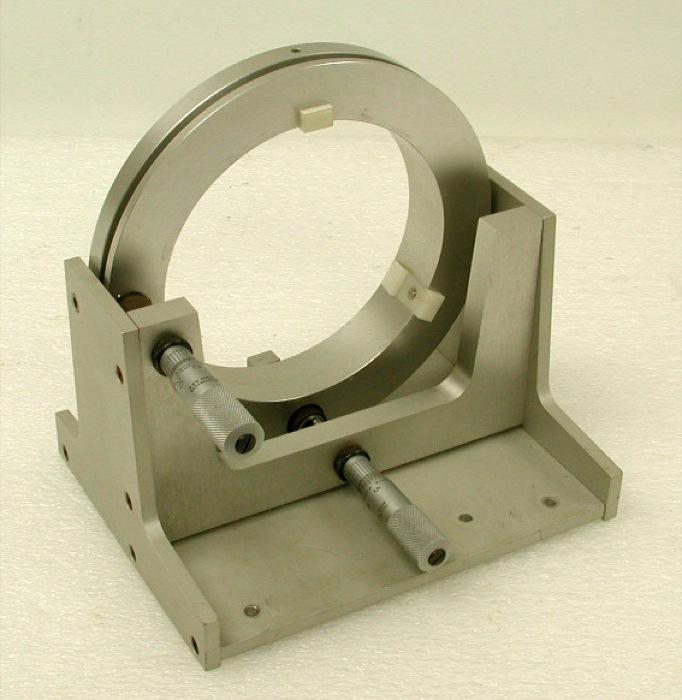

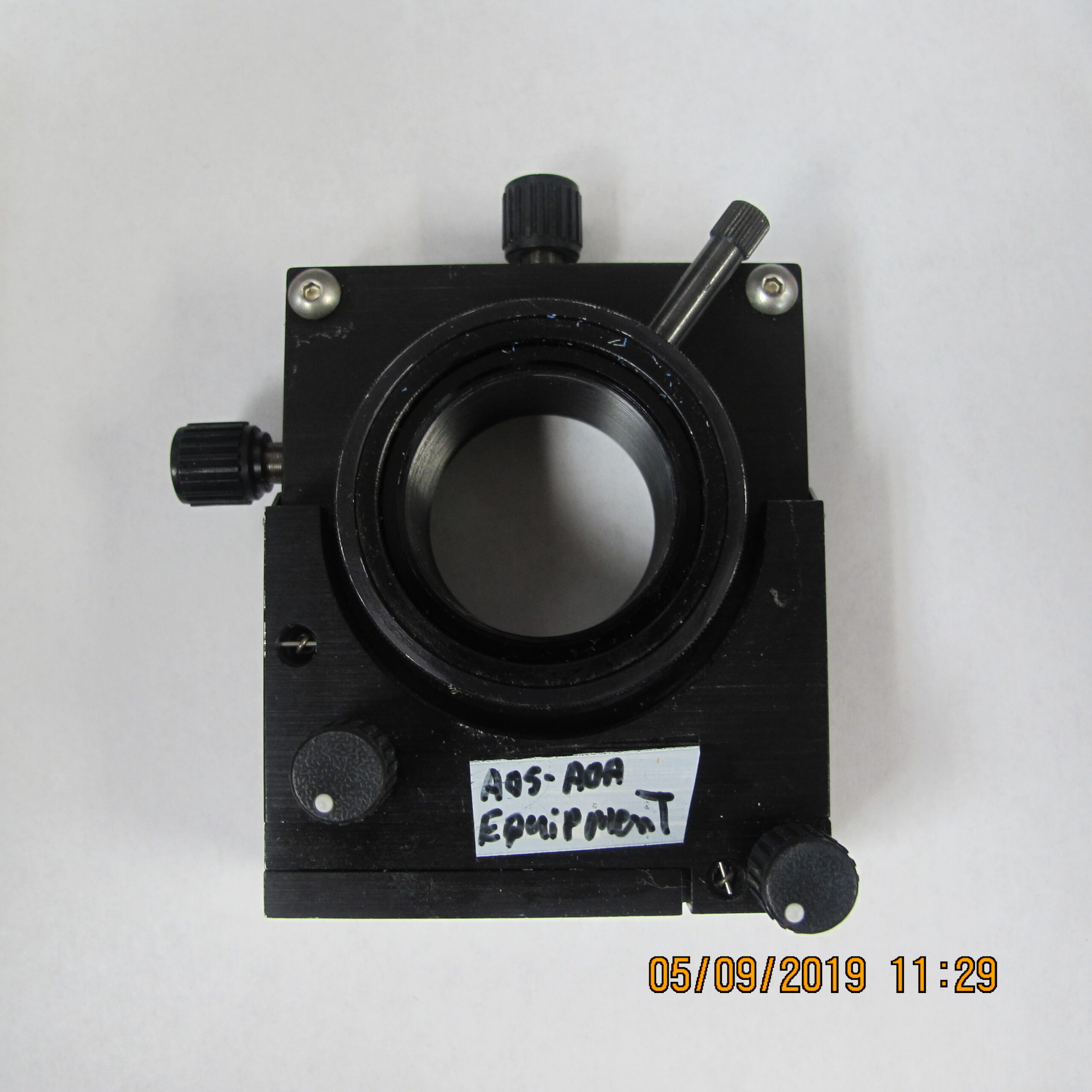

This item is a Klinger (also known as Micro-Controle, and now manufactured by Newport) SL type Gimbal optic mount. The SL gimbals are characterized by massive steel construction with two mounting flats for orthogonal positioning of the tilting axes so the controls are on the right or left side of the beam path. The two planes of tilt perfectly intersect the plane of the optic (often a mirror) so adjusting azimuth or elevation results in the reflection point always being stationary on the optic axis. The elements are held in place by a spring-loaded ring. There are three small bearing points to precisely locate the optic in the main yoke, and another three within the spring-loaded clamping ring. The securing screws are not quite symmetrically placed to aid in removal of elements through the slightly larger opening.
