IE1012 | Extension Box, 8-channel digital input, 24В VВ DC, 0.2В ms, M12
0,00 ₽The IE1012 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 0.2В ms. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
IE2002 | Extension Box, 8-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The IE2002 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A and indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors.
-

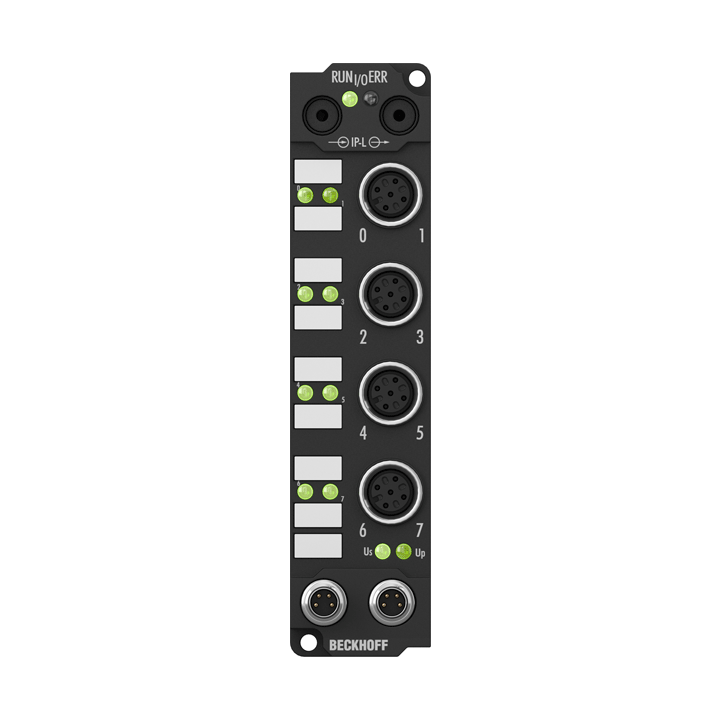

IE2042 | Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M12
0,00 ₽The IE2042 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 12В A. The outputs are supplied by three load circuits, for this reason this module does not relay the supply voltage.
-

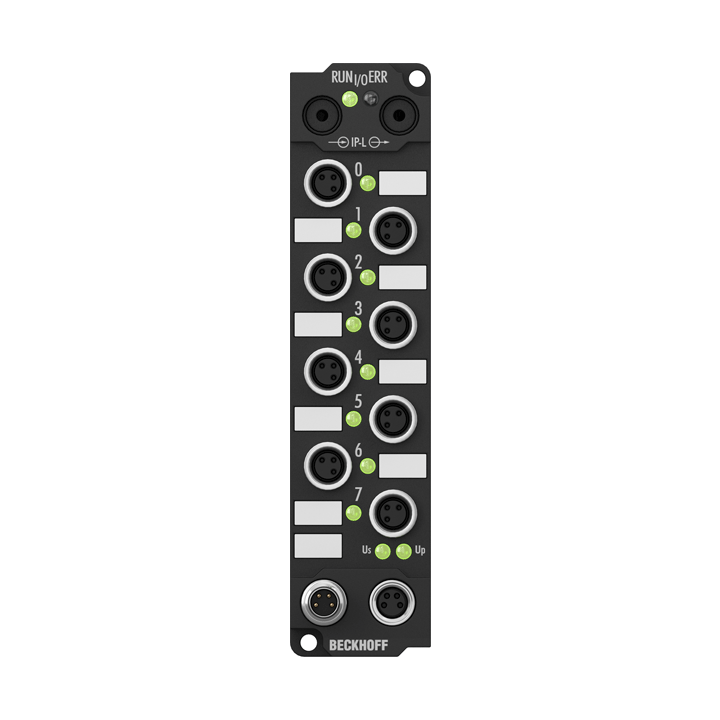

IE2311 | Extension Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 0.2В ms, 0.5В A, M8
0,00 ₽The IE2311 digital I/O module combines four digital inputs and four digital outputs in one device. The input filter is 0.2В ms. The outputs handle load currents of up to 0.5В A, are short-circuit-proof and protected against inverse polarity.
-
IE2331 | Extension Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 0.2В ms, 2В A, M8
0,00 ₽Цифровой модуль ввода-вывода IE2331 объединяет четыре цифровых входа и четыре цифровых выхода в одном устройстве. Выходы выдерживают токи нагрузки до 2 В А, защищены от короткого замыкания и обратной полярности. Общий ток для всех четырех выходов ограничен 4 В А. Входной фильтр составляет 0,2 В мс.
-
IE2401 | Extension Box, 8-channel digital input + 8-channel digital output, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The IE2401 digital I/O module has sixteen channels that can be used as eight inputs and eight outputs. The device can therefore be flexibly adapted to the requirements of the application. The signals are connected through M8 screw type connectors, which have four pins (with separate input and output pins). Adapter cables are available for use in input-only or output-only cases, as well as connectors for field wireable. It is also possible to use the power supply cable directly as the sensor cable.
-
IE3202 | Extension Box, 4-channel analog input, temperature, RTD (Pt100), 16В bit, M12
0,00 ₽The IE3202 analog input module allows resistance sensors to be connected directly. The module’s circuitry can operate the sensors using 2-, 3- or 4-wire connection techniques. Linearization over the full temperature range is realized with the aid of a microprocessor. The temperature range can be selected freely. The module can also be used for simple resistance measurement with the output in ohms. The module’s standard settings are: resolution 0.1В°C in the temperature range of Pt100 sensors in 4-wire connection. Sensor malfunctions such as broken wires are indicated by error LEDs.
-

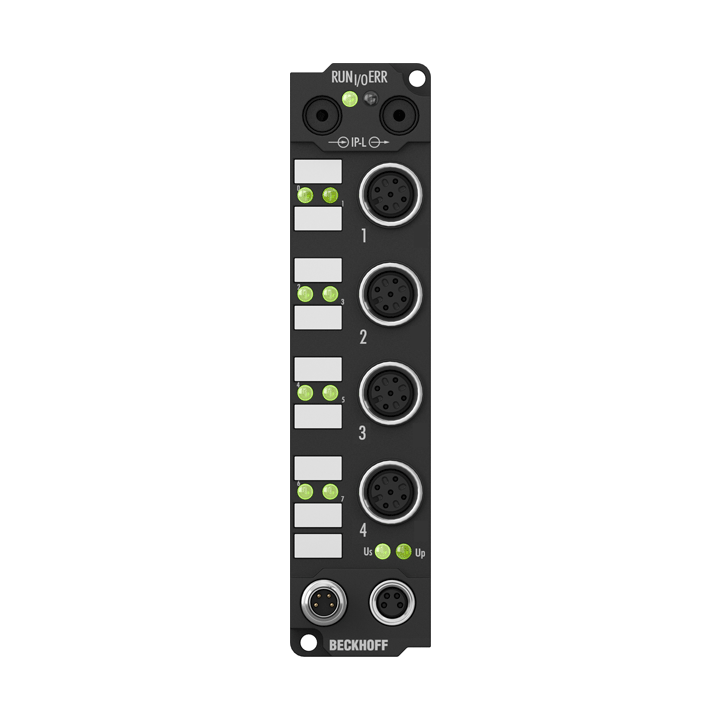

IE4112 | Extension Box, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, M12
0,00 ₽The IE4112 analog output module generates analog output signals in the range from 0/4 to 20В mA. The power is supplied to the process level with a resolution of 15В bits (default), and is electrically isolated. If the input is transmitted without an arithmetical sign, 16В bit resolution may also be selected. If necessary, the output scaling can be altered.
