EP1122-8001 | EtherCAT Box, 2-портовый разъем, M8, быстрое горячее подключение
0,00 ₽Двухпортовый узел EtherCAT позволяет конфигурировать топологии EtherCAT типа «звезда». Модульный узел EtherCAT может быть реализован с использованием нескольких устройств EP1122-8001 на одной станции. К портам узла могут быть подключены отдельные устройства или целые сегменты EtherCAT. Узел EtherCAT подключается через разъемы M8 с отображением состояния соединения и активности. Светодиод Run указывает на состояние EP1122-8001. Через TwinCAT и другие подходящие ведущие устройства EtherCAT EP1122-8001 также поддерживает соединение и разъединение сегментов EtherCAT во время работы (горячее подключение).
-

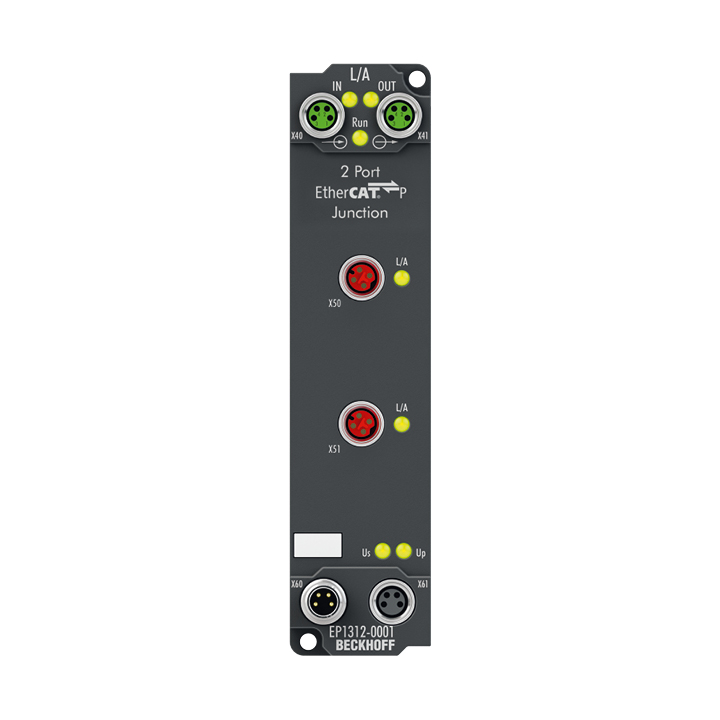

EP1312-0001 | EtherCAT Box, 2-port junction, EtherCATВ P, M8
0,00 ₽The 2-port EtherCATВ P junction enables configuration of EtherCATВ P topologies from an EtherCAT system. A modular EtherCATВ P star can be realized by using several EP1312-0001 in series. Individual devices or complete EtherCATВ P strands can be connected at the junction ports. EtherCAT P branches are connected via screw type, shielded P-coded M8 sockets. The state of the EtherCATВ P line is indicated by the Link/Activity LEDs. The Run LED indicates the status of the EP1312-0001.
-

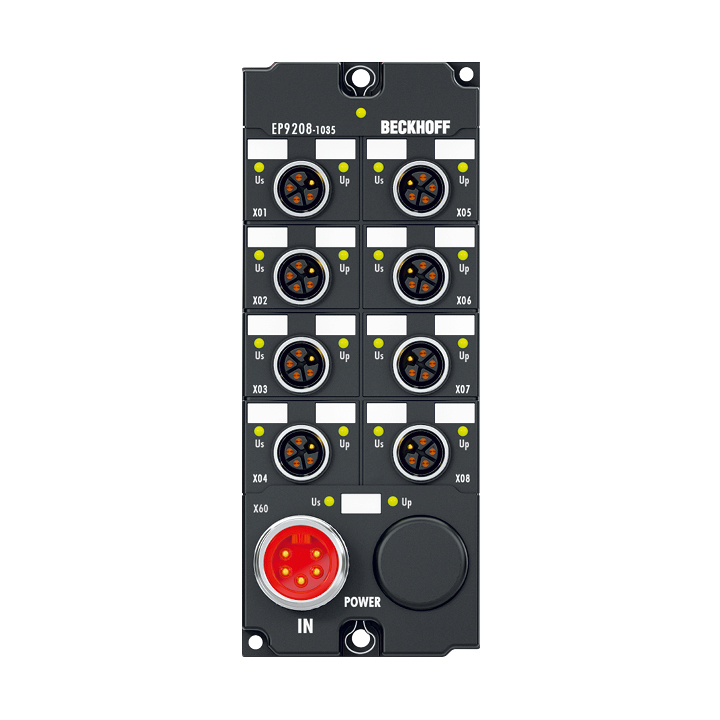

EP9208-1035 | EtherCAT Box, 8-channel power distribution, passive, M12, L-coded
0,00 ₽The EP9208-1035 EtherCAT Box is a fully passive distribution box. It is supplied via a 7/8′ connector. The eight outputs are executed as M12 sockets with L-coding according to EN 61076, the EP9208-1035 is thus suitable for carrying currents up to 16В A at 24В VВ DC/48В VВ DC on each of two channels per socket. The sockets and the supply each have an LED to display the channels. The input and outputs of the EP9208-1035 are connected directly with no intermediately connected electronics. The supply of power to smart servo drives, such as the AMI812x with integrated output stage, is implemented very simply with the EP9208-1035.
-

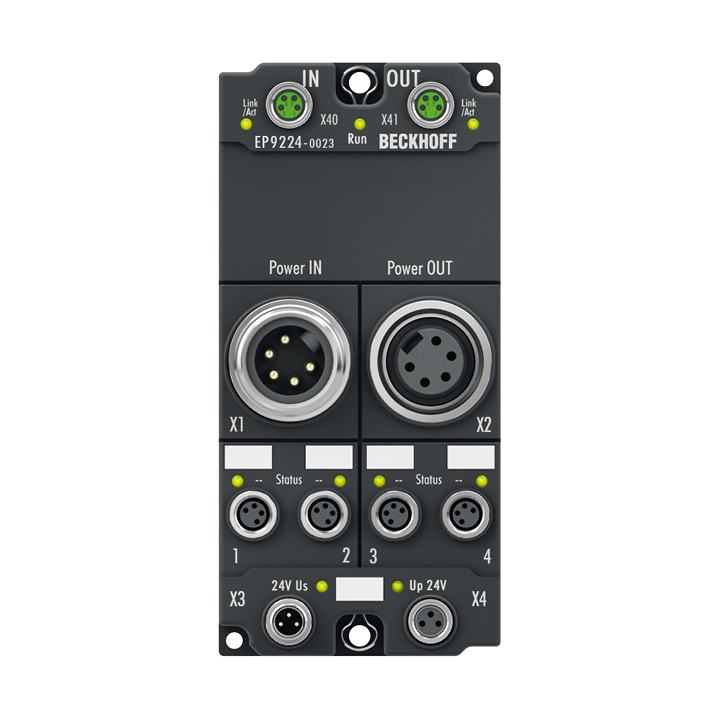

EP9224-0023 | EtherCAT Box, 4/4-channel power distribution, for EtherCAT Box modules, with current measurement/data loggingPreferred type
0,00 ₽The EP9224-0023 enables connection of four EtherCAT Box power supply branches. In each 24В V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off.
-

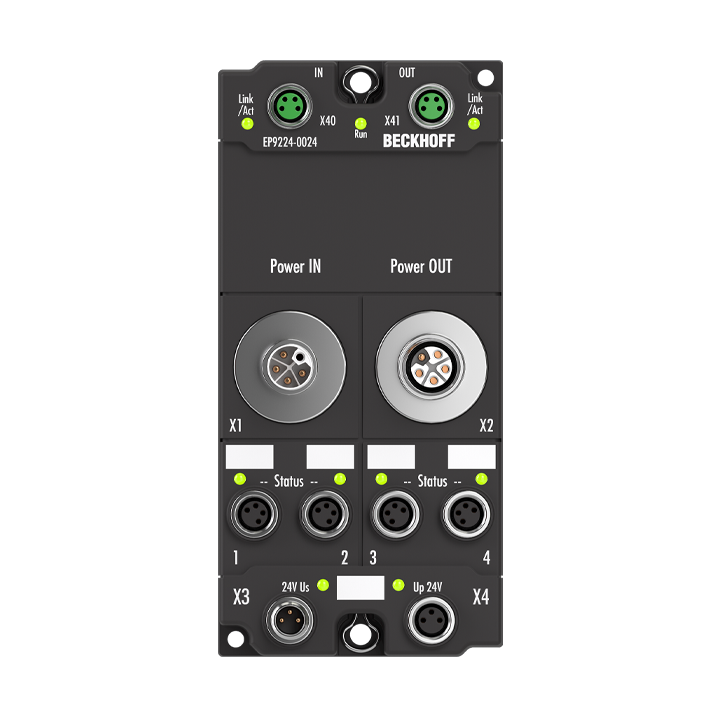

EP9224-0024 | EtherCAT Box, 4/4-channel power distribution, for EtherCAT Box modules, with current measurement/data logging, M12, L-codedNew
0,00 ₽The EP9224-0024 enables connection of four EtherCAT Box power supply branches. In each 24В V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off.
-
EP9224-2037 | EtherCAT Box, 4-port junction, with power supply, ENP, B17
0,00 ₽The EP9224-2037 allows the distribution of one B17 ENP input to four EtherCAT ports and M8 power supply ports with B17-ENP forwarding. In each voltage branch, the current consumption for control voltage US and peripheral voltage UP is monitored, limited and, if necessary, switched off.
-

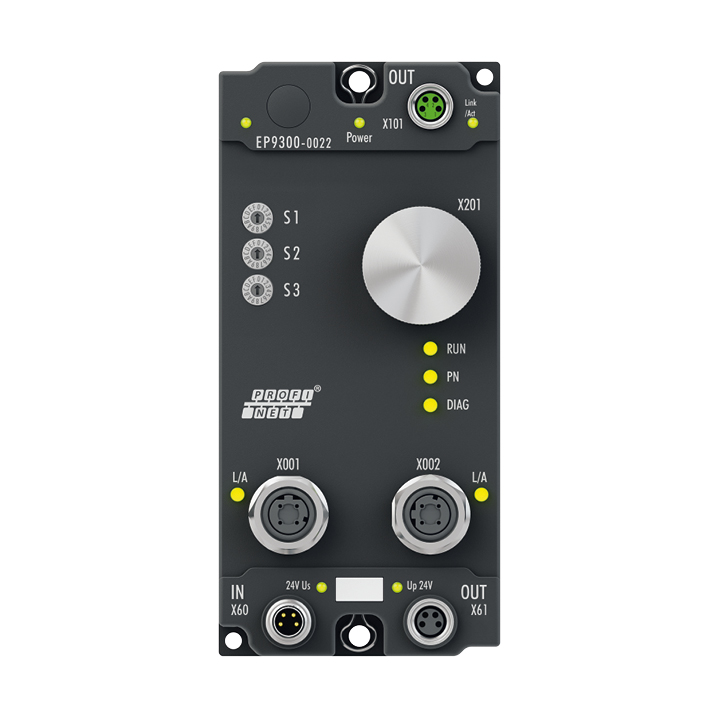

EP9300-0022 | EtherCAT Box, PROFINETВ RT
0,00 ₽The EP9300-0022 EtherCAT Box connects PROFINET RT networks to the EtherCAT Box modules (EPxxxx, ERxxxx and EQxxxx) and converts the telegrams from PROFINET RT to EtherCAT. One station consists of an EP9300-0022 and any number of EtherCAT Box modules. The box is connected to PROFINET RT via a D-coded M12 socket (in/out). With EtherCAT, the PROFINET RT box can use the powerful and ultra-fast I/O system with its large selection of EtherCAT Box modules. The EP9300-0022 supports the PROFINET RT profile and seamlessly fits into PROFINET RT networks.
-
EP9521-0020 | EtherCAT Box, media converter, Ethernet/EtherCAT, 100В Mbit/s, 24В VВ DC
0,00 ₽The EtherCAT/Industrial Ethernet module EP9521-0020 for Industrial Fast Ethernet/100В Mbit/s serves as media converter from optical fiber to copper and vice versa. The media converter is suitable for multi-mode fiber-optic cables and is used for direct transfer between the two media. The media converter operates bidirectionally and collision-free with constant delay. It can be diagnosed as a separate EtherCAT device. In this way, unlike standard media converters, it enables fast link control and the safe closing of the EtherCAT strand even in the event of a fault. Since the transfer direction (copper to optical fiber | optical fiber to copper) is relevant for the bus, the device can be configured via a switch. Via this switch “Link Loss Forwarding” for normal Ethernet operation can also be selected.
