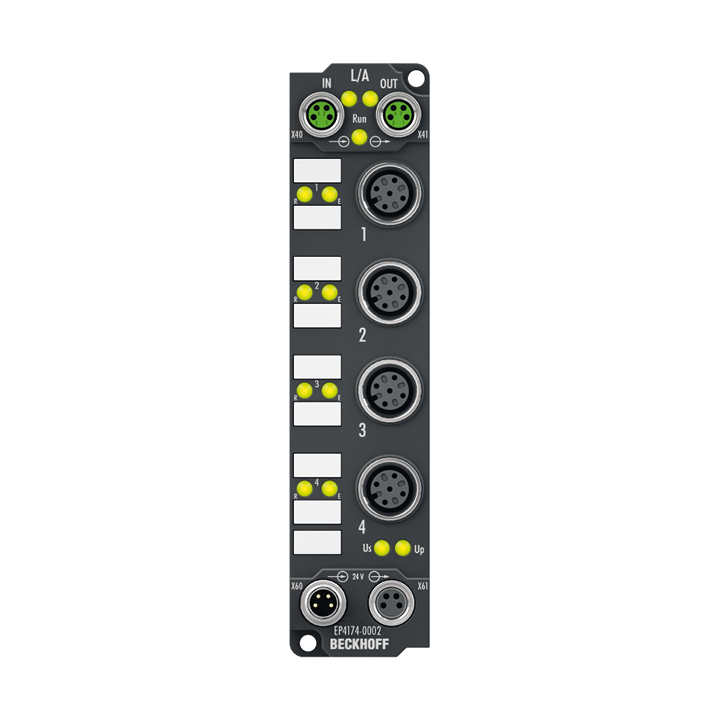

EP4174-0002 | EtherCAT Box, 4-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12
0,00 ₽The EP4174-0002 EtherCAT Box has four analog outputs which can be individually parameterized, so that they generate signals either in the -10…+10В V or the 0/4…20В mA range. The voltage or output current is supplied to the process level with a resolution of 15В bit (default), and is electrically isolated. The output scaling can be changed if required.
-

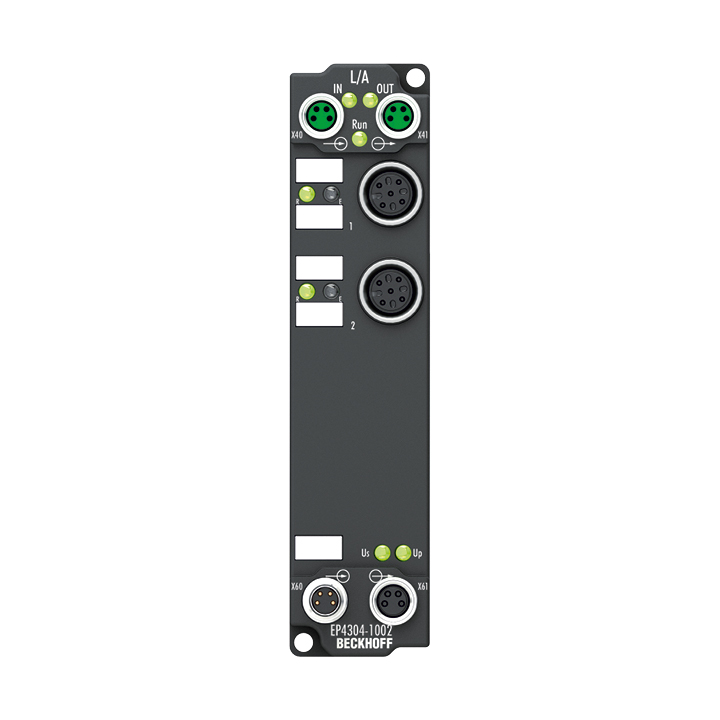

EP4304-1002 | EtherCAT Box, 2-channel analog input + 2-channel analog output, voltage, В±10В V, 16В bit, single-ended, M12, 2 x digital input 24В VВ DC
0,00 ₽EtherCAT Box EP4304-1002 имеет два аналоговых входа, два аналоговых выхода и два цифровых входа, которые могут быть параметризованы индивидуально, так что они либо обрабатывают, либо генерируют сигналы в диапазоне ±10 В. Сигналы напряжения имеют 16-битное разрешение. Аналоговые каналы имеют общий потенциал заземления с источником питания UP/24 В постоянного тока. На каждом M12 имеется цифровой вход типа 3 с временем фильтрации входного сигнала 10 мкс, а также аналоговый вход и аналоговый выход. Поскольку цифровой вход и аналоговые входы/выходы расположены вместе на одном M12 каждый, сложные оконечные устройства могут управляться с помощью одного соединительного кабеля. Это экономит дополнительные расходы, кабельные каналы и монтажные работы.
-
EP4314-1002 | EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, В±20В mA, 16В bit, single-ended, M12
0,00 ₽The EP4314-1002 EtherCAT Box combines two analog inputs, two analog outputs and two digital inputs which can be individually parameterized, so that they process/generate signals either in the В±10 or В±20В mA range. The resolution for the current signals is 16В bit.
-
EP4378-1022 | EtherCAT Box, 4-channel analog input + 4-channel analog output, multi-function, ±10 V, 0/4…±20 mA, 16 bit, single-ended, M12
0,00 ₽The EP4378-1022 EtherCAT Box provides a combination of four analog inputs and four analog outputs as well as eight digital inputs/outputs. The analog channels can be individually parameterized so that they process/generate signals either in the В±10В V or the 0/4…±20В mA range. The resolution of the input signals is 16В bit depending on the sign. The voltage or output current is supplied to the process level with a resolution of 15В bit (default), electrically isolated. The digital channels can be used for reading binary sensors or controlling actuators according to the ENВ 61131-2, typeВ 1/3 specifications. The inputs have a filter constant of 3В ms. The outputs process load currents up to 0.5В A and are both short-circuit proof and reverse-polarity protected. All output channels have a common ground potential. At the upper four M12 connections each, the following is available: an analog input, an analog output and a digital input/output, which is freely assignable without prior configuration, so that complex end devices such as frequency converters, hydraulic power units, motor drives or similar can be supplied using just one connection cable. At the lower four M12 connections a digital input/output is available each, freely assignable without configuration.
