EK1960 | TwinSAFE Compact Controller
0,00 ₽The EK1960 TwinSAFE Compact Controller extends the range of applications of the TwinSAFE integrated safety solution. The core of the safety controller corresponds to the functionality of the EL6910 dedicated safety controller. Thanks to the compact design of the EK1960 with 20 safe digital inputs and 24 safe digital outputs (up to 2В A), it covers in particular the safety requirements of compact machines. The EK1960 can be operated ‘stand-alone’ or networked with other controllers via the EtherCAT connectors. If the coupler is operated in an EtherCAT network, it can be extended by all EL/ES terminals like any EtherCAT coupler. As a stand-alone device, it cannot be extended by terminals.
-

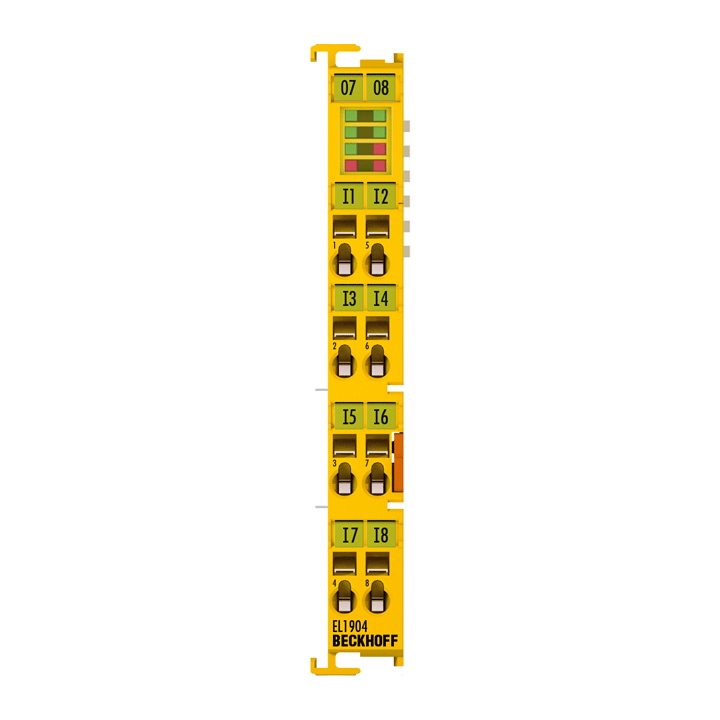

EL1904 | EtherCAT Terminal, 4-channel digital input, 24В VВ DC, TwinSAFE
0,00 ₽The EL1904 TwinSAFE component is a digital input terminal for sensors with potential-free contacts for 24В VВ DC. It has four fail-safe inputs. The signals are transmitted via FSoE to a TwinSAFE Logic-capable component and can be used there to evaluate them in terms of safety.
-
EL1918 | EtherCAT Terminal, 8-channel digital input, 24В VВ DC, TwinSAFE, TwinSAFE Logic
0,00 ₽The EL1918 TwinSAFE component is a digital input terminal for sensors with potential-free contacts for 24В VВ DC. The EtherCAT terminal has eight fail-safe inputs, which are transmitted via FSoE to a TwinSAFE Logic-capable component.
-

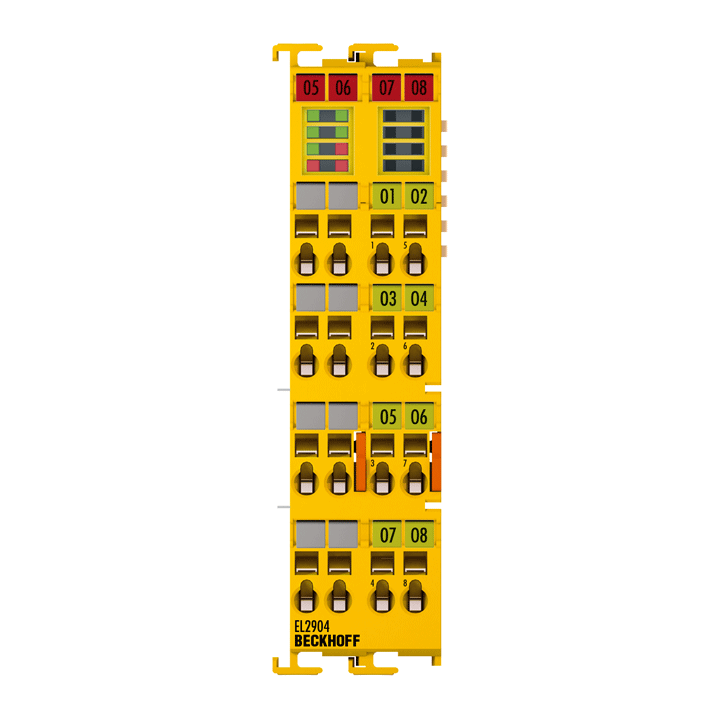

EL2904 | EtherCAT Terminal, 4-channel digital output, 24В VВ DC, 0.5В A, TwinSAFE
0,00 ₽The EL2904 TwinSAFE component is a digital output terminal with four channels. It switches 24В VВ DC actuators with up to 0.5В A per channel and has four fail-safe outputs. The outputs are controlled by a TwinSAFE Logic-capable component via FSoE. The component automatically switches off if it detects an error (fail-stop).
-
EL6900 | EtherCAT Terminal communication interface, TwinSAFE Logic
0,00 ₽The EL6900 TwinSAFE component is a dedicated safety controller. It is used for the realization of safety-oriented applications on the basis of Boolean values. For this purpose, certified function blocks are available that enable the processing of safe input signals and the generation of safe output signals. The functionality of the function blocks ranges from simple Boolean functions such as AND and OR to complex function blocks for muting the safety function.
-

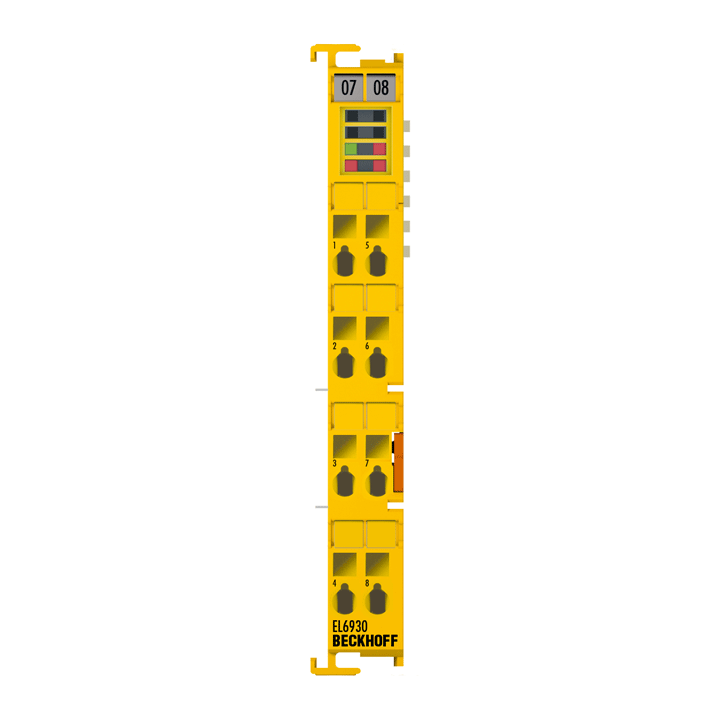

EL6930 | EtherCAT Terminal communication interface, TwinSAFE Logic
0,00 ₽The EL6930 TwinSAFE component is a dedicated safety controller. It is used for the realization of safety-oriented applications on the basis of Boolean values. For this purpose, certified function blocks are available that enable the processing of safe input signals and the generation of safe output signals. The functionality of the function blocks ranges from simple Boolean functions such as AND and OR to complex function blocks for muting the safety function.
-
ELM7212-9016 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 4.5В A, OCT, STO, TwinSAFE Logic
0,00 ₽The ELM72xx-9016 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage, overcurrent, terminal temperature or motor load via the calculation of a IВІT model, offers maximum operational reliability.
-

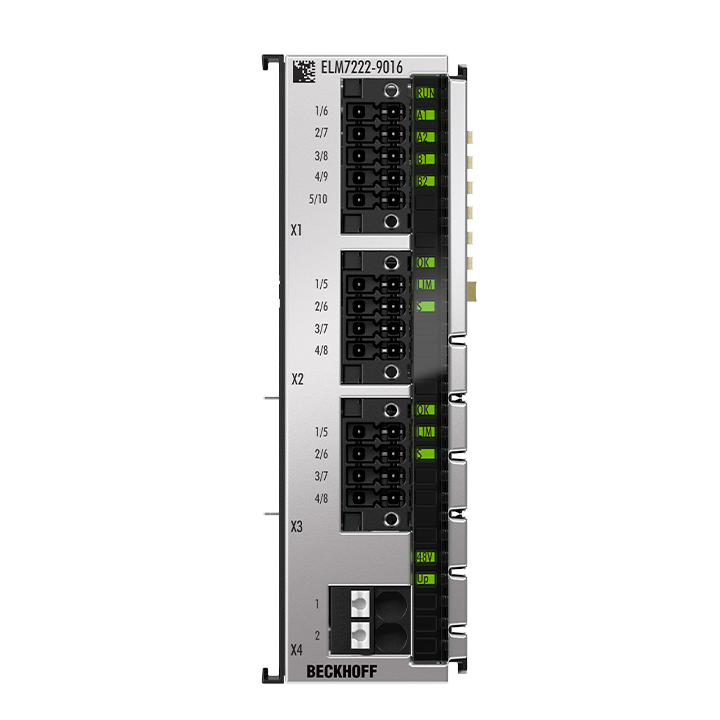

ELM7222-9016 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 8В A, OCT, STO, TwinSAFE Logic
0,00 ₽The ELM72xx-9016 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage, overcurrent, terminal temperature or motor load via the calculation of a IВІT model, offers maximum operational reliability.
-
ELM7222-9018 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 8В A, OCT, STO, Safe Motion, TwinSAFE Logic
0,00 ₽The ELM72xx-9018 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage, overcurrent, terminal temperature or motor load via the calculation of a IВІT model, offers maximum operational reliability.
-
ELM7231-9016 | EtherCAT Terminal, 1-channel motion interface, servomotor, 48В VВ DC, 16В A, OCT, STO, TwinSAFE Logic
0,00 ₽The ELM72xx-9016 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage, overcurrent, terminal temperature or motor load via the calculation of a IВІT model, offers maximum operational reliability.
